Trigger Spray Actuation Head

Trigger Spray Actuation Head

Agentdraw were approached by a global leader in innovative dispensing products, and were asked to develop and manufacture a metered-dose, trigger spray actuator head for applications in the garden & horticulture marketplace.

Trigger Spray Actuation Head Design and Development

Concept Design & Development

Based on the design brief, a range of concept sketches and rendered visualisations were created. This allowed the customer to assess the proposed aesthetics and arrangement of key features before fully engineering a working solution.

Spray bottle head drawings

Engineering Design

A concept was chosen by the client and the assembly of parts was developed by our highly skilled in-house design team using the latest SolidWorks® CAD software. This data was then used to create a series of realistic visualisations and to produce rapid prototyped models for further functional, ergonomic and aesthetic assessment prior to approval.

Spray bottle drawings

Tooling & Manufacture

Once the prototyped parts were approved, the CAD data was realeased into our tooling department where the mould tool was designed and manufactured by our team of experienced toolmakers. Once complete, the mould tool was moved into production where it was installed onto an appropiate size injection moulding machine and parts were mass produced.

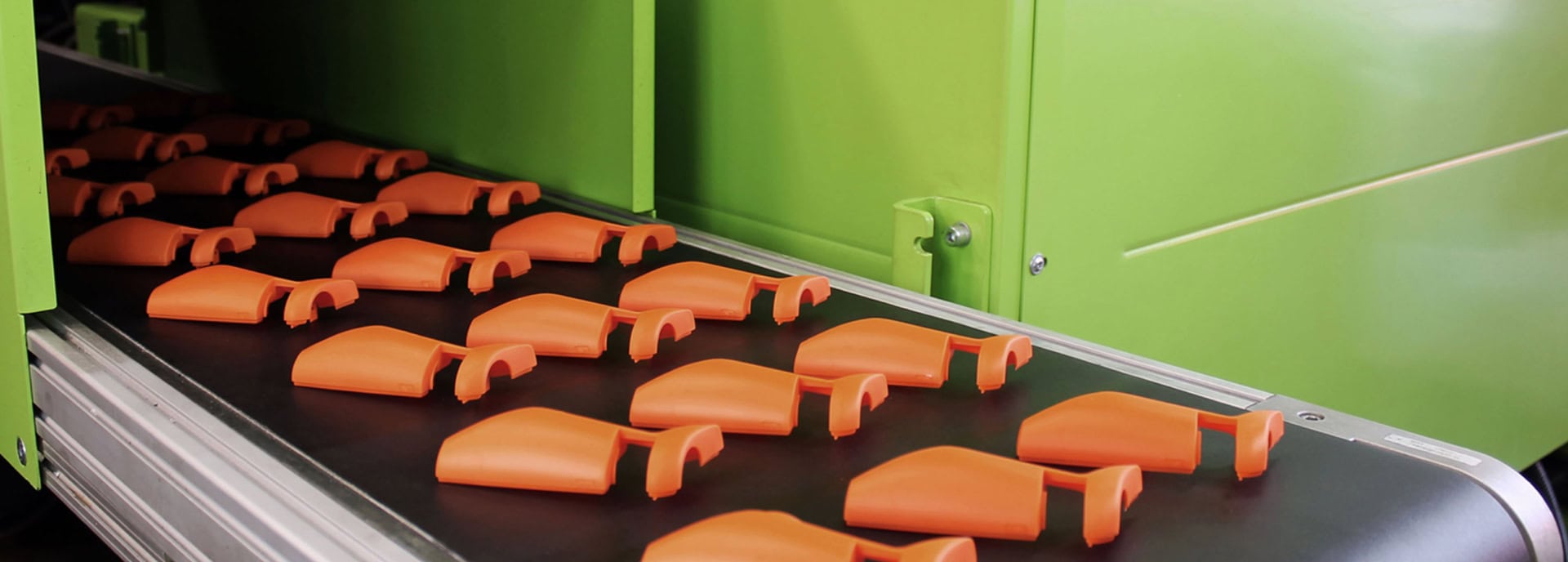

Injection moulded product on production line

“When we work with Agentdraw on our projects it is refreshing to work with a team who are not only professional in every aspect, but also are able to quickly have aclear grasp of what we are trying to achieve with our final product, and give reliable advice and new ideas on how best we can achieve it. Their turnaround time fordelivering innovative solutions was quick, and we are more than happy to recommend and work with Agentdraw again in the future”

A global trigger spray manufacturer
